High speed face sheet mask/facial mask folding/ folding packing machine
Machine Feature:
1. PLC + touch screen control system, easy to operate
2. The automatic folding film, automatic load bags, saving labor
3. When No film it will stop to work ,and no bags will alarm, optional automatic and manual functions
4. Stainless steel welded frame, solid and reliable
5. Rotary type,magic eye detection , high speed .
6.After sales service: 24hours online service
7.Warranty: one year
8.this machine running is very stable, high speed .
Main parameter
| Model | YC-3AB |
| Packing speed | 1800-2200 pcs /min |
| Width of Bag | 95-160mm. |
| Length of Bag | 140-220mm. |
| Size of each working table | 250*225mm |
| Max mask sheet’s size | 240*220mm |
| Usually size of mask | 210*210mm |
| Working station | 4 stations |
| Machine material | SS 304 |
| Folding knife | Sun steel |
| Working table | Aluminum |
| Power supply | 220V 1 phase |
| Power | 0.5KW |
| Air pressure | 0.6Mpa |
| Dimension | 1500*1130*1500mm |
| N.W | 350kgs |

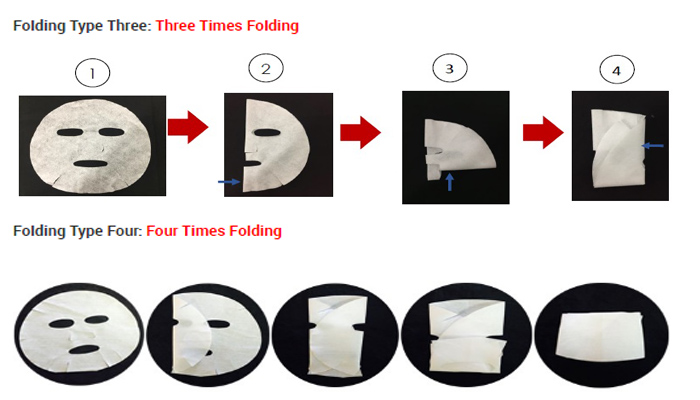

Folding type:
Our samples :
After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.
Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
